2x 8’ T12 to 2x 8’ LED
  • BKY Lighting

2x 8’ T12 to 2x 8’ LED



Scope: Retrofit 70 fixtures from 2 lamp F96T12 to 2 lamp 8’ LED Bypass lamps. A mix of High Output and Single Pin Lamps

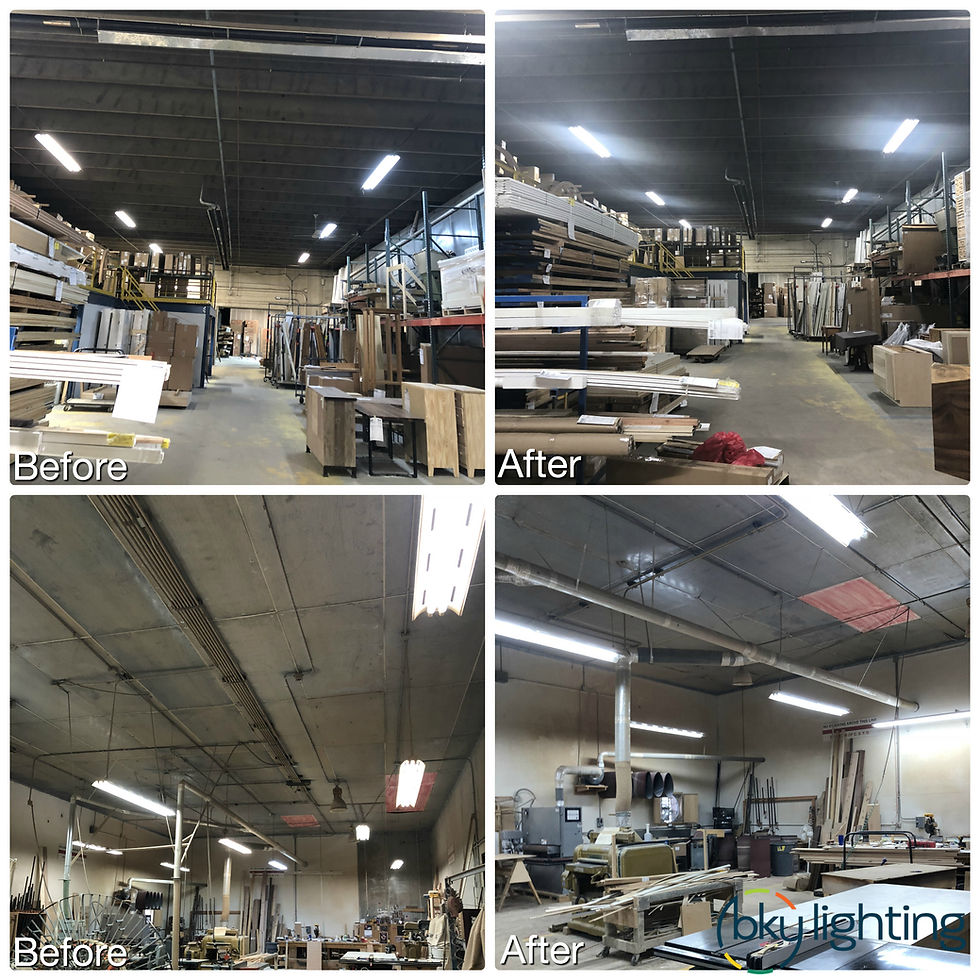

BKY Lighting assisted in converting 2 lamp F96T12 fixtures into 2 lamp 8’ LED bypass fixtures. This provided a more uniform light color, and a much brighter output. Each LED lamp (high output or slimline) provides over 5,500 lumens at 5000K. The double ended ballast bypass solution makes retrofits quick and easy.

BKY Lighting helped the customer through the rebate process receiving 1/2 the project cost back.


Results: F96T12 75w (Single Pin)

  • From 145w/fixture to 86w/fixture

  • From 10,000 hour lamps to 50,000 hour LEDs

  • Expected ROI 1.7 years

Results: F96T12 110w (HO)

  • From 238w/fixture to 86w/fixture

  • From 10,000 hour lamps to 50,000 hour LEDs

  • Expected ROI 0.8 years

#led #before #after #lighting #retrofit #investment #ROI #lamps #fixtures #conversion #savings #light
